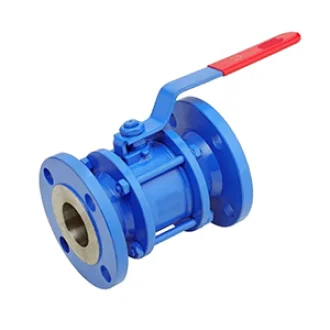

The 3-piece cast steel ball valve from Netflow is ideal for all industries. It comes with a high-pressure rating and an optional ISO 5211 mounting pad for easy actuation. It is available in different sizes from 1/2” to 12” and comes with face-to-face flanged connections.
★ Size : 1/2” to 12”
★ Body : ASTM A216 WCB, ASTM A351 Gr.CF8M, CF8 on Request
★ Ball : SS316 or SS304
★ Stem : SS 316 or SS304
★ Seat&Seal : PTFE as Standard
★ End Connections : ASME, DIN, JIS Flange
★ Working Pressure : Class 150/300, PN10-40, JIS 10k/20k
★ Temperature Range : -50° to 450 °F
★ TEST STANDARD : API598, EN12266, and ISO5208
★ ISO 5211 Mounting Pad Optional
★ Lockable Handle Optional
★ Anti-static Device Optional
★ Pre-load Belleville Washers on Request
★ V-ring Packing Optional
★ Multiple O-ring Stem Seals Optional
