Netflow Flush Bottom valves are designed to provide drainage and dead space free shutoff for reactors, vessels and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself. Advantage of Disc type is short stroke for open/close operation, this valves are also manufacture with jacket for semi solid /thick material need heated before it will flow easily. We also provide gear pneumatic cylinder/ electric motor operation.

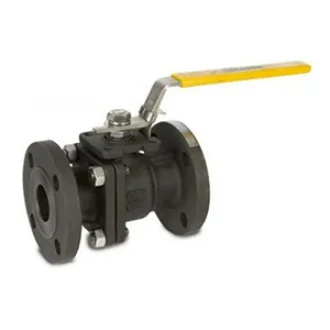

This popular Netflow Ball valve is available in a cast steel or forged steel body. It comes with face-to-face flanged ends and a size range of 1/2″ – 12″. Ideal for manually operated pipelines, the ball valve also comes with protection against fugitive emissions, as well as an optional ISO 5211 mounting pad.
★ Size : 1/2” to 12”
★ Steam rating : 150 PSI WSP
★ Body : ASTM A216 WCB, ASTM A351 Gr.CF8M, CF8 on request
★ Ball : SS304/SS316
★ Stem : SS304/SS316, Blow-out-proof design
★ Temperature Rating : -45.5 °C (-50°F) to 246’C (475’F)
★ Working Pressure : Class 150/300, PN10-40, JIS 10k/20k
★ Face-to-Face : ANSI B16.10, DIN3202 and JIS B2002
★ Flange Dimensions : ANSI B16.5, DIN2632/2633 & DIN2634/2635 and JIS B2212
★ TEST STANDARD : API 598, EN12266, and ISO5208
★ Anti – Static Device Optional
★ API 607 fire-safe design Optional
★ V-ring Stem Packing Optional
★ ISO 5211 Mounting Pad Optional
